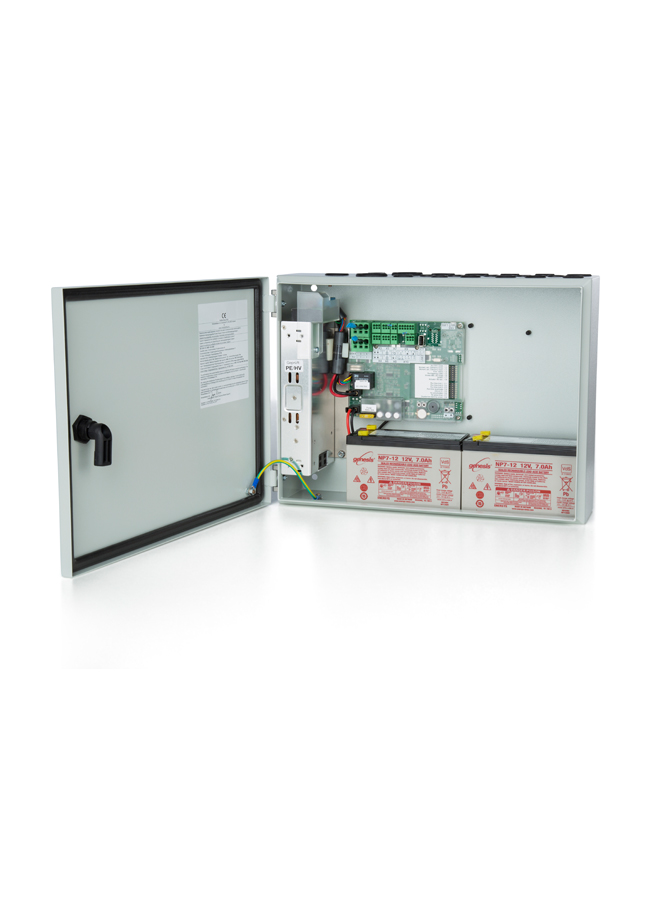

Windowmaster WSC 310 AOV Control Unit

£992.25

Manufactured by Windowmaster

Voltage

Windowmaster WSC 310 AOV Control Unit (10 Amp) with battery backup used to automate 24V window actuators in an AOV smoke system. Inputs for smoke sensors and manual callpoints. Please refer to datasheet for further technical information.

WHAT'S IN THE BOX?
  • 1 x Control Unit
  • 2 x 12v Batteries
FEATURES
  • 2-Zone
  • 24V DC motor output, 10 Amps max.
  • 72 hour battery backup
INPUTS FOR
  • Fire Alarm via WSA 306 add on board
  • Smoke Sensor (SSR-D)

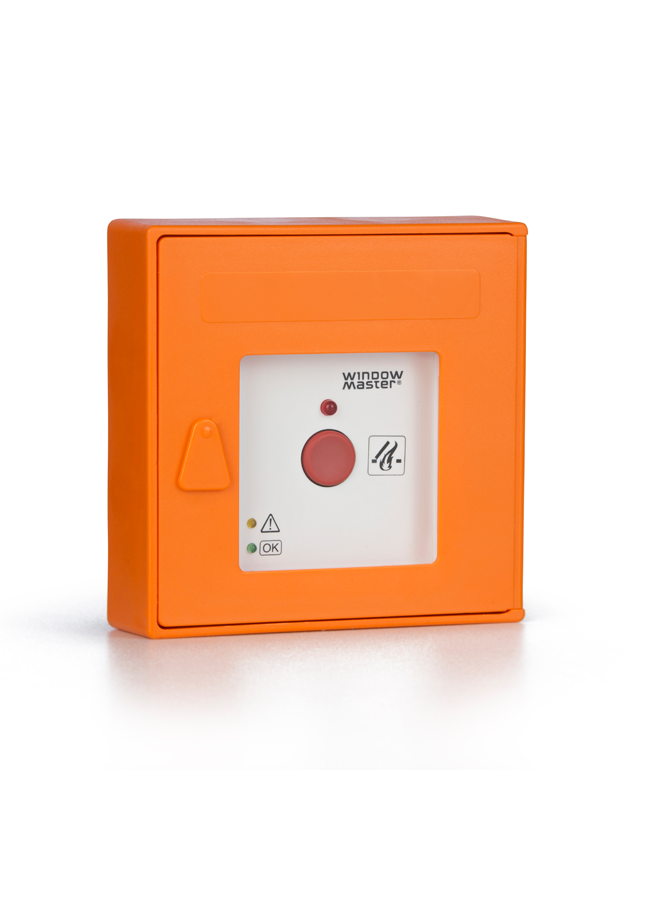

  • Firemans Override Switch (WSK 503)
  • Switch (S50-1)
COMPATIBLE WITH
  • 24V DC window actuators (WMU 836, MICRO XL, Supermaster)
APPLICATIONS
  • AOV stairwell
  • AOV lobby or corridor
MANUFACTURER CODE / DESCRIPTION
  • WSC 310 S 0202 E1
