S08C Spindle Actuator (900N) 350-500mm

From £262.93

Manufactured by K&G (Grasl)

Colour

Voltage

Stroke

Brackets

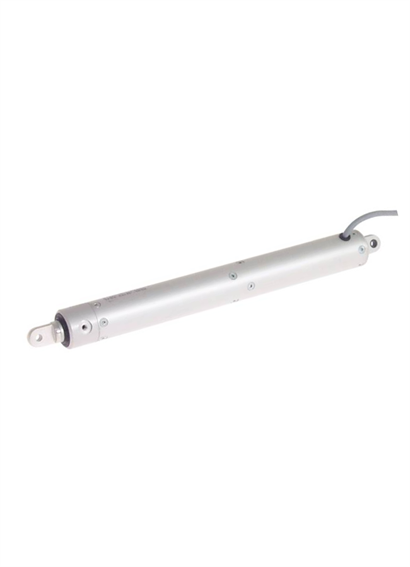

K&G (Grasl) S08C Spindle Actuator is designed for opening almost any roof light or dome. With a high push/pull force (900N) and range of stroke sizes it gives the user all the options they will need.

WHAT'S IN THE BOX?
  • Actuator unit
  • 1.5 metres of double insulated cable
WHAT ELSE WILL I NEED?
  • Fixing Bracket & Screws
  • Extra cable if 1.5 metres is not sufficient (refer to manual for correct cable)
  • A qualified electrician or competent professional
COLOUR OPTIONS
  • Silver Anodised
STROKE OPTIONS
  • 200mm
  • 300mm
  • 350mm
  • 400mm
  • 500mm
CONTROL OPTIONS
  • 24V DC - PSU-2, PSU-4, PSU-8, SCU-4
SUITABLE FOR

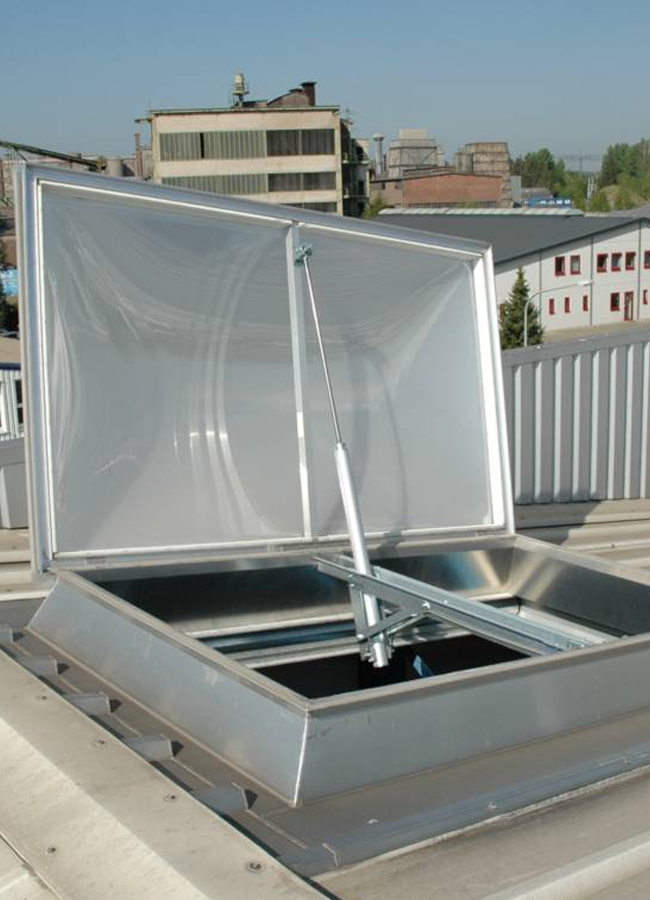

  • Pitched/Flat roof windows or Centre Pivot windows
  • Smoke Ventilation / AOV / Natural Ventilation / Window Automation
MANUFACTURER CODE / DESCRIPTION
  • S08C-200-6-2,5 (S08C 24V 200mm)
  • S08C-300-6-2,5 (S08C 24V 300mm)
  • S08C-350-6-2,5 (S08C 24V 350mm)
  • S08C-400-6-2,5 (S08C 24V 400mm)
  • S08C-500-6-2,5 (S08C 24V 500mm)

For any help or technical support please contact our sales team - 01242 622 958 | info@aovdirect.co.uk

Next working day on orders placed before 3.00pm (Monday-Friday). Please note some items can be out of stock so we recommend contacting our sales team for availability - 01242 622955 or info@aovdirect.co.uk.
