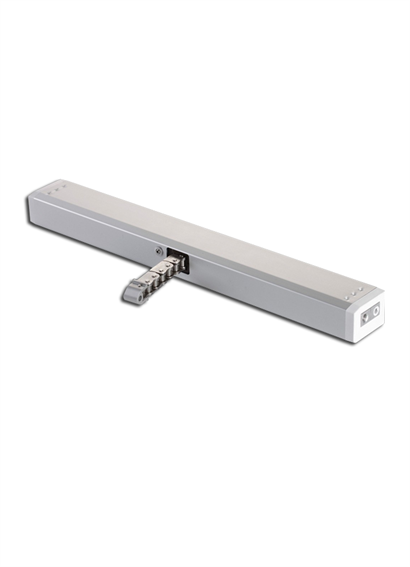

Aumuller KSA S12 Chain Actuator 250-1500mm

From £625.58

Manufactured by Aumuller

Colour

Voltage

Stroke

Brackets

Aumuller KSA S12 Chain Actuator 250-1500mm designed for use on most windows and lightweight roof vents. With a choice of larger stroke options it makes it an ideal choice for many smoke control applications.
WHAT'S IN THE BOX?
  • Actuator unit
  • 3 metres of double insulated cable
WHAT ELSE WILL I NEED?
  • Fixing brackets
  • Fixing screws
  • Extra cable if 3 metres is not sufficient (refer to manual for correct cable)
  • A qualified electrician or competent professional
COLOUR OPTIONS
  • Silver Anodised
STROKE OPTIONS
  • 250mm
  • 300mm
  • 400mm
  • 500mm
  • 600mm
  • 800mm
  • 1200mm
  • 1500mm
CONTROL OPTIONS
  • 24V DC - EMB 7300 2.5, EMB 7300 5
SUITABLE FOR
  • Top-Hung, Bottom-Hung, Side-Hung or Centre Pivot windows
  • Smoke Ventilation / AOV / Natural Ventilation / Window Automation
MANUFACTURER CODE / DESCRIPTION
  • 522725 (KSA 250 S12 24V)
  • 522730 (KSA 300 S12 24V)
  • 522740 (KSA 400 S12 24V)
  • 522750 (KSA 500 S12 24V)
  • 522760 (KSA 600 S12 24V)
  • 522780 (KSA 800 S12 24V)
  • 522810 (KSA 1000 S12 24V)
  • 522812 (KSA 1200 S12 24V)
  • 522815 (KSA 1500 S12 24V)

For any help or technical support please contact our sales team - 01242 622 958 | info@aovdirect.co.uk

Next working day on orders placed before 3.00pm (Monday-Friday). Please note some items can be out of stock so we recommend contacting our sales team for availability - 01242 622955 or info@aovdirect.co.uk.
